HRD Polyurethane U-Cup Rod Seal features a dual-lip design for excellent sealing performance, low friction, and extended service life. Ideal for hydraulic cylinders, telescopic cylinders, forklifts, construction machinery, and agricultural equipment.
Item NO.:
HRDOrder(MOQ):
50Payment:
T/TProduct Origin:
ChinaShipping Port:
ShanghaiProduct Description
HRD Polyurethane U-Cup Rod Seal is a high-performance rod sealing solution designed for hydraulic cylinders operating under demanding conditions. Featuring a primary sealing lip and an auxiliary lip, the HRD effectively retains a lubricating oil film between the two lips, reducing friction and minimizing seal wear during operation.
Manufactured from premium polyurethane material, this Polyurethane Rod Seal for Hydraulic applications delivers excellent dynamic and static sealing performance, outstanding wear resistance, and reliable low-pressure sealing capability. Its optimized design helps extend seal service life and ensures stable performance even under pressure fluctuations and shock loads. For telescopic and multi-stage cylinders, larger cross-section sizes are recommended to achieve optimal sealing results.
Technical Data
| Parameter | Value |
| Operating temperature | -30°C to +100°C |
| Working Pressure | ≤ 35 MPa |
| Surface speed | ≤ 0.5 m/s |
| Material | PU |
| Design type | Polyurethane U-cup Rod Seal |
| Unit system | Metric |
|
Applications
|
Advantages
|
Product Parameter Table

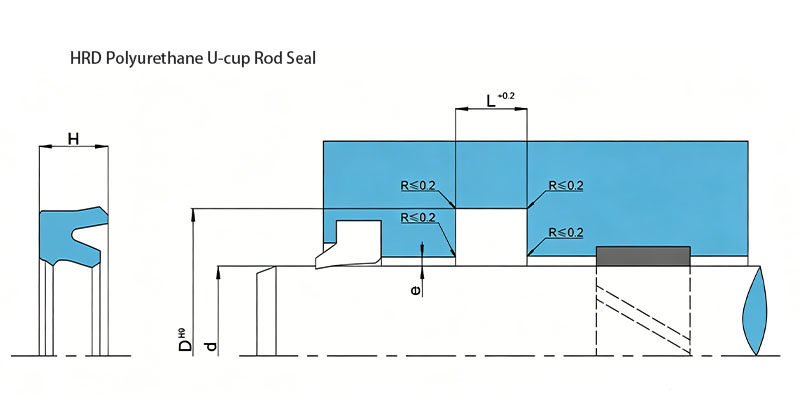

| Designation | Rod diameter | Housing groove diameter | Housing groove width | Primary sealing element |
| [mm] | [mm] | [mm] | ||
| HRD 20X28X6.3 P2001 | 20 | 28 | 6.3 | PU |
| HRD 22X30X6.3 P2001 | 22 | 30 | 6.3 | PU |
| HRD 25X33X6.3 P2001 | 25 | 33 | 6.3 | PU |
| HRD 28X36X6.3 P2001 | 28 | 36 | 6.3 | PU |
| HRD 30X38X6.3 P2001 | 30 | 38 | 6.3 | PU |
| HRD 32X42X8 P2001 | 32 | 42 | 8 | PU |
| HRD 35X45X8 P2001 | 35 | 45 | 8 | PU |
| HRD 36X46X8 P2001 | 36 | 46 | 8 | PU |
| HRD 40X50X8 P2001 | 40 | 50 | 8 | PU |
| HRD 45X55X8 P2001 | 45 | 55 | 8 | PU |
| HRD 50X60X8 P2001 | 50 | 60 | 8 | PU |
| HRD 55X65X11 P2001 | 55 | 65 | 11 | PU |
| HRD 56X71X12.5 P2001 | 56 | 71 | 12.5 | PU |
| HRD 60X70X11 P2001 | 60 | 70 | 11 | PU |
| HRD 63X78X12.5 P2001 | 63 | 78 | 12.5 | PU |
| HRD 70X85X12.5 P2001 | 70 | 85 | 12.5 | PU |
| HRD 80X95X12.5 P2001 | 80 | 95 | 12.5 | PU |
| HRD 90X105X12.5 P2001 | 90 | 105 | 12.5 | PU |
| HRD 100X120X16 P2001 | 100 | 120 | 16 | PU |
| HRD 110X130X16 P2001 | 110 | 130 | 16 | PU |
| HRD 120X140X16 P2001 | 120 | 140 | 16 | PU |
| HRD 125X145X16 P2001 | 125 | 145 | 16 | PU |
| HRD 130X150X16 P2001 | 130 | 150 | 16 | PU |
| HRD 140X160X16 P2001 | 140 | 160 | 16 | PU |
| HRD 150X170X16 P2001 | 150 | 170 | 16 | PU |
| HRD 160X180X16 P2001 | 160 | 180 | 16 | PU |
| HRD 180X200X16 P2001 | 180 | 200 | 16 | PU |
| HRD 200X225X20 P2001 | 200 | 225 | 20 | PU |
HRD Rod Seal
 |
|
| Material code | P2001 |
| Speed | Up to 0.5 m/s (1.6 ft/s) |
| Temperature range | -30°C to +100°C(–22 to +212 °F) |
| Dimension standards | Some sizes fit seal housings in accordance with ISO 6195-B:2013. |
| Size list | → Metric |
| Additional information | → PU U-cup Rod Seal |
| Maximum values of application parameters (e.g. speed, temperature) should not be applied continuously nor simultaneously. | |
